industrial cee power mobile plug inlet iec60309 plug black HTN013B manufacturer from China yueqing hengtong electric.,ltd

industrial cee power mobile plug inlet iec60309 plug black

Price:	0.1~0.2 USD
Payment Terms:	T/T,L/C
Special Groups:	industrial plug socket (41)
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HTN013B

Production Capacity: 300000/month

Delivery Date: within 30days

Grounding: Standard Grounding

Brand Name: HTCN

Rated Current: 16a

Means of Transport: Ocean,Land,Air

Packing: carton

Application: Industrial

Type: Extension Socket

Rated Voltage: 220-250V

waterproof: ip44

current:16A voltage:220-250V
All of our products, are manufactured according to the international standard IEC60439-1,IEC60439-4,IEC60309-1

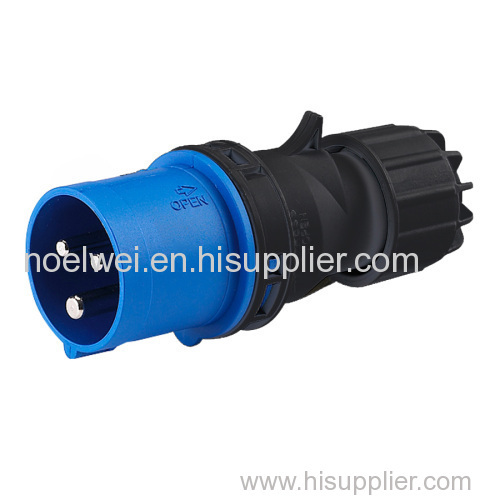

CEE Electrical Plug 16A 2P+E IP44 6H HTN013B

Rated current:16A

Rated voltage: 220-250V

No. of poles:2P+E (3P)(2P+T)(Three Poles)( 3 Pole)(3 Pin)(Three Pins)

Protection degree: IP44

Housing material: Flame Retardant PA6 RoHS Reach

Contact: nickel-plated brass RoHS Reach

Standards: IEC60309-1, IEC60309-2

Certificates: S,CB,CE,TUV,ISO9001:2008,RoHS,REACH

Name	Industrial Plug 16A 2P+E IP44 6H HTN013
Model	HTN013B
Specification	1) Rated current:16A
	2) Rated voltage: 220-250V
	3) No. of poles:2P+E (3P)
	4) Operation Temperature: -25℃~+40℃
Protection Class	IP44
Main Material	Housing material: PA6 RoHS; Contact: nickel-plated brass RoHS
Certificates	S,CB,CE,TUV,ISO9001:2008,RoHS,REACH
Color	blue
Package	Polybag + 10pcs/Inner Box + 100pcs/Export carton

>Contact screws are accessible in the same direction;
>Base and cover fixed with quick-lock system;
>Saving time without fixing screws;
>New type cable glands tightening the cable, sealing of the cables as well.

All of our products, are manufactured according to the international standard IEC60309-1, IEC60309-2, and they are also in compliance with the national standard GB/ T11918-2001 & GB/ T11919-2001. and our products have achieved CE approval, CB test approval and has owned S certification of SEMKO. And we have obtained more than eighteen patents technology on this field in China.

Our products: Industrial Plugs, Industrial Sockets and Industrial Connectors adopt "preventing incorrectly insertion" design and have the advantages of good electric insulation, good impact resistant function, dustproof, damp proof, waterproof (or watertight), and corrosion resistant, etc. You can depend on our products for superior, reliable results in the fields of mine, petrochemical industry, construction, wharf, factory, exhibition center and urban infrastructure construction, etc.
